DXF Interface

Features

  • Output of accurate tooth form geometry for any involute gears in DXF format
  • The scope of works includes the DXF interface without additional costs

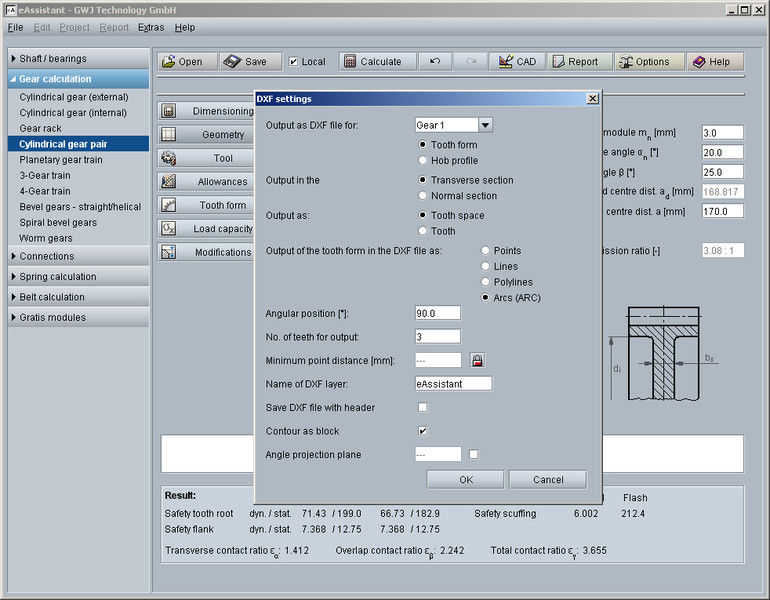

  • Different settings are possible for the output:
    • DXF output with points
    • DXF output with lines
    • DXF output with polylines
    • DXF output with arcs
    • Number of teeth
    • Input of a desired layer name where the contour will be placed

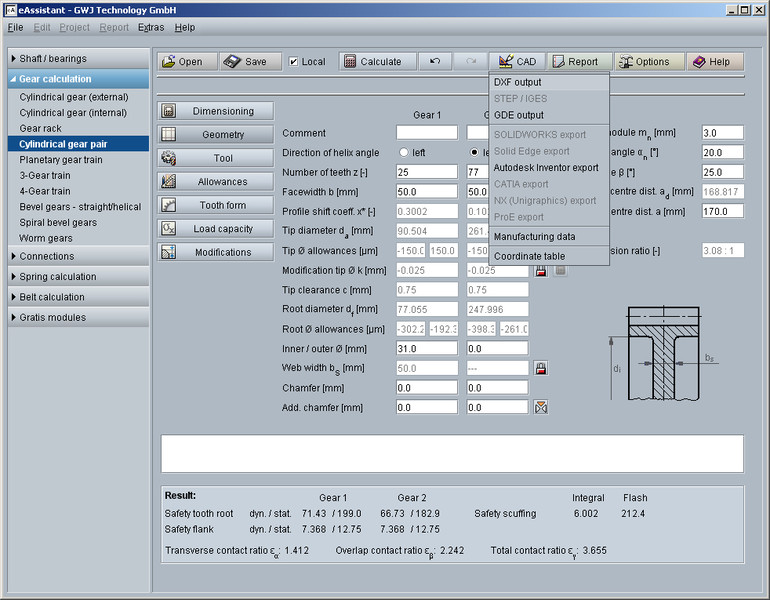

DXF output
Spur gears: DXF output
