This workshop introduces the essential fundamentals of cylindrical gears and provides a comprehensive overview of their basic principles. It covers the key aspects every engineer needs to understand when working with cylindrical gears. In addition, the course delivers in-depth knowledge and practical skills in the dimensioning and optimisation of cylindrical gears, addressing more advanced technical topics.
Designed for young professionals and experienced engineers alike, this seminar is ideal for engineers, designers, technicians, and anyone looking to refresh and deepen their knowledge of cylindrical gear technology.
Main Topics

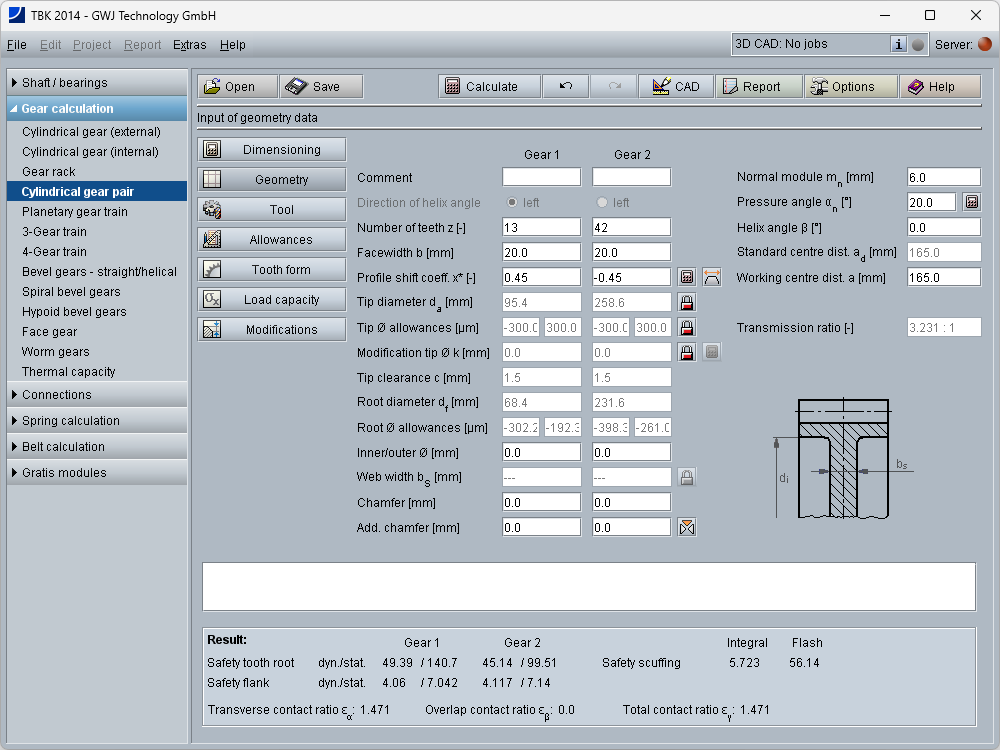

- Gear tooth parameters, main gear geometry: Profile shift, generating profile shift, module, pressure angle, helix angle, centre distances, pitch circle, reference circle, modification of tip diameter
- Backlash: Tip clearance, backlash normal plane, backlash at pitch line, radial backlash
- Contact ratios, tools, basic rack profiles, protuberance, machining allowance
- Quality, allowances and test data

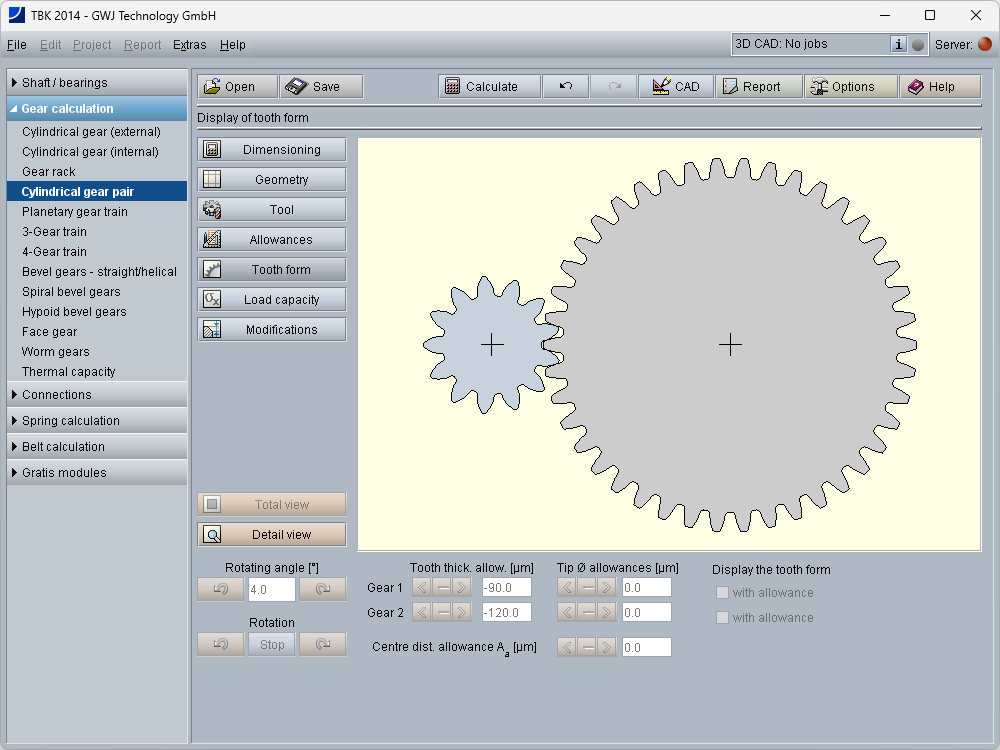

- Accurate gear tooth form
- Root and tip circle diameter: Generated root diameter, form diameter, diameter of active flank

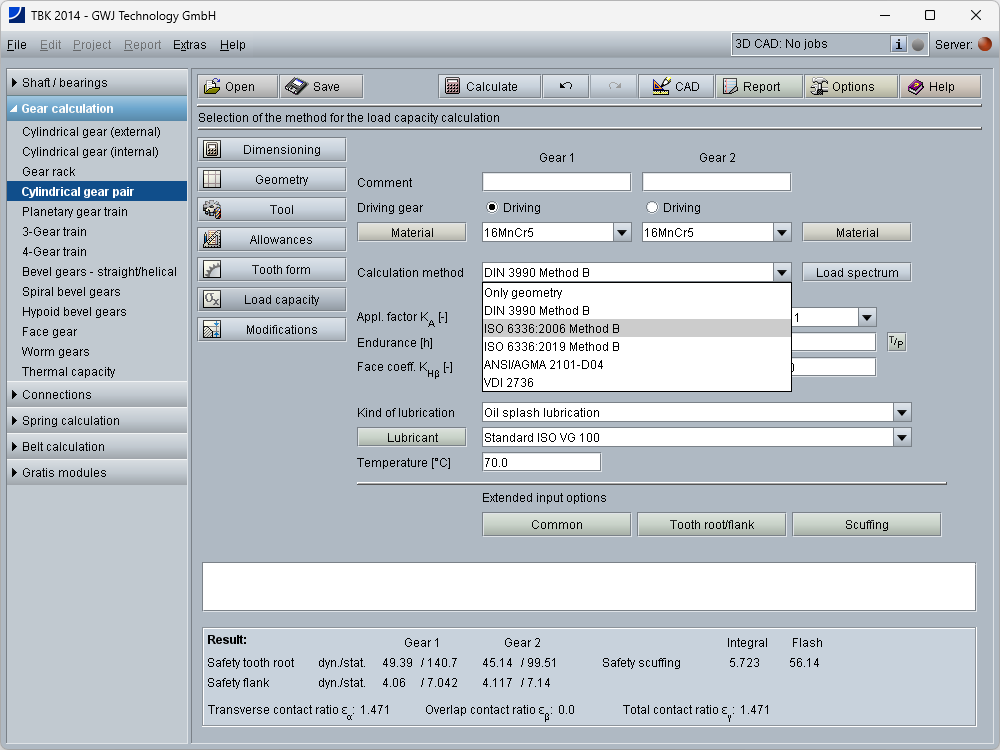

- Calculation of load capacity: Geometrical influences, face coefficient, material, kind of material treatment, hardening depth, roughness, lubrication, mode of operation, minimum safeties, modifications, load capacity of tooth flank and tooth root, scuffing (flash and integral temperature), differences between DIN 3990 and ISO 6336 Involute splines according to DIN 5480, DIN 5482, ISO 4156, ANSI B92.2M, ANSI B92.1 and similar
- Internal gears, rack-pinion pairings, planetary gear trains
- Design and optimization: Meshing interferences of internal and external gears, analysis and remedy of meshing interferences, load spectra, special gearings, noise optimization, modifications, guidelines for the design of cylindrical gears: requirements, module, facewidth, selection of profile shift sum, distribution of profile shift, constructive information, optimization of root, flank and scuffing load capacity
- Manufacturing data/drawing details: Re-calculation based on drawing details, determination of profile shift, if it is not indicated on the drawing
- 2D DXF gear tooth form and eAssistant/TBK 2014 3D CAD plugins for different CAD systems
