- Face gear/pinion pairing
- Shaft angle 90°, no offset
- Spur gear

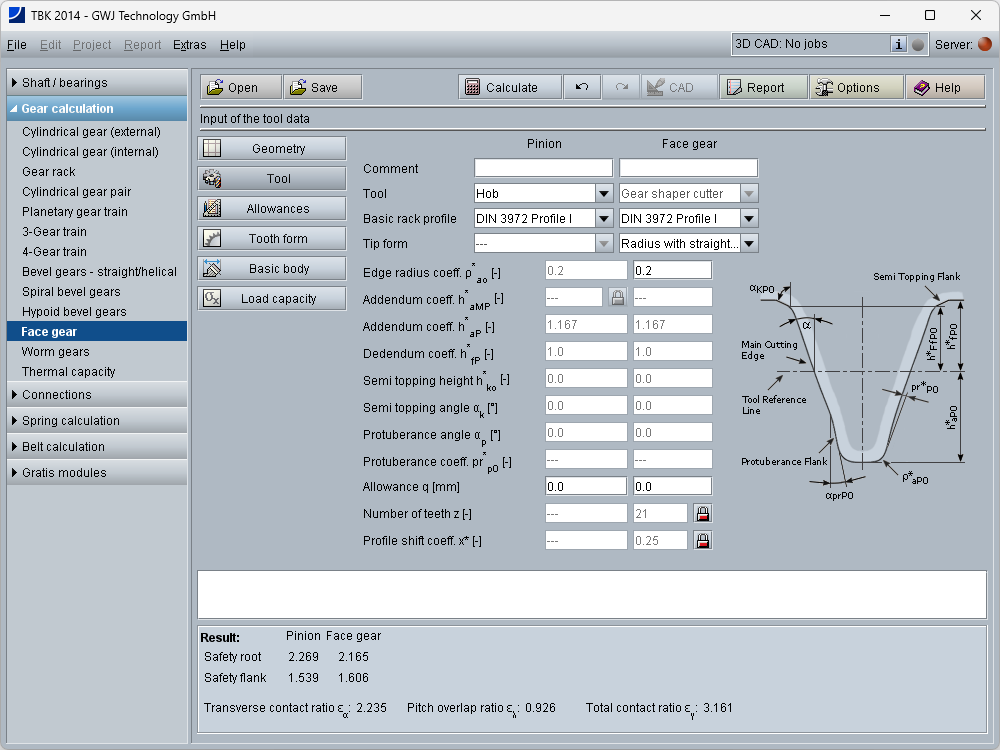

- Tool data for face gear/pinion analogous to cylindrical gear pair
- Number of cutter teeth for face gear manufacturing ≥ number of teeth of the mated pinion
- Tolerances/allowances for pinion analogous to cylindrical gear pair

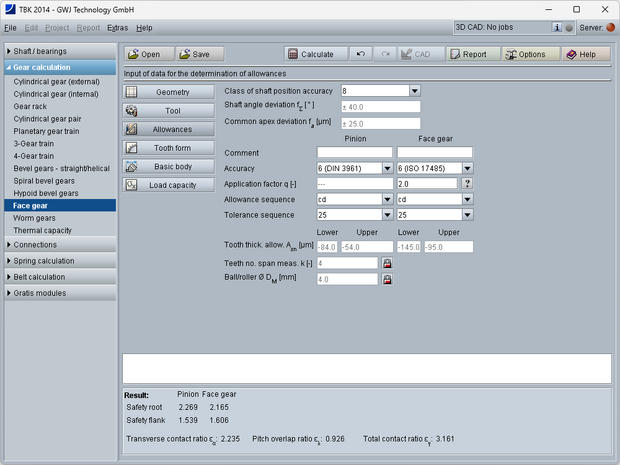

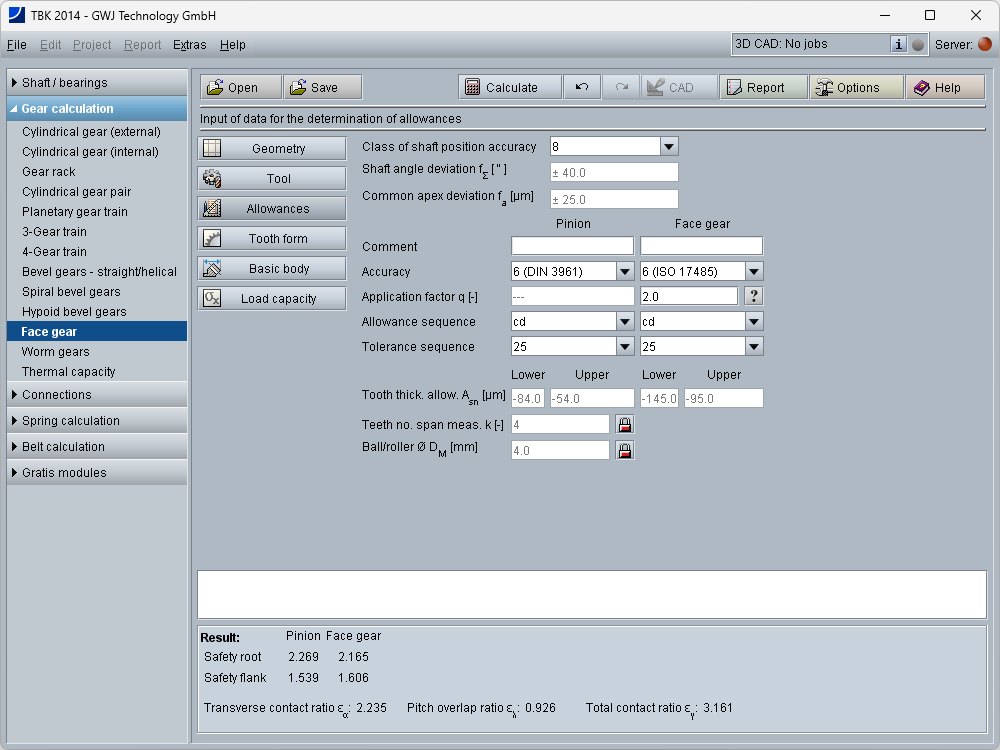

- Tolerances/allowances for face gear and face gear/pinion pairing: combination of cylindrical gear pair and bevel gear pair

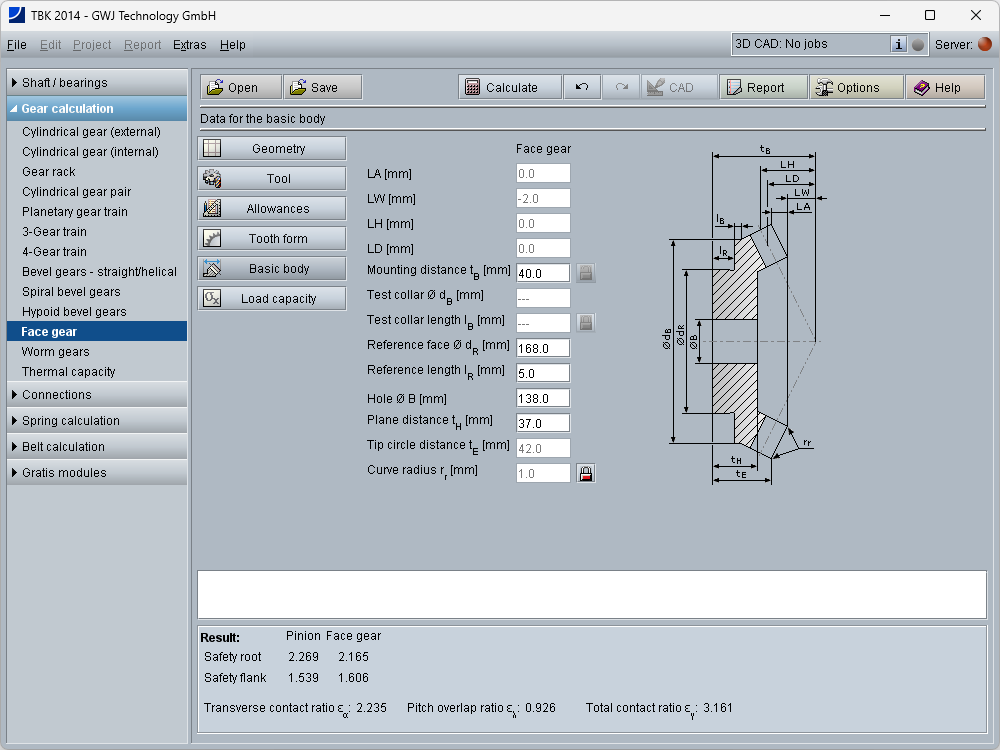

- Gear body dimensions for face gear
- Pinion modifications

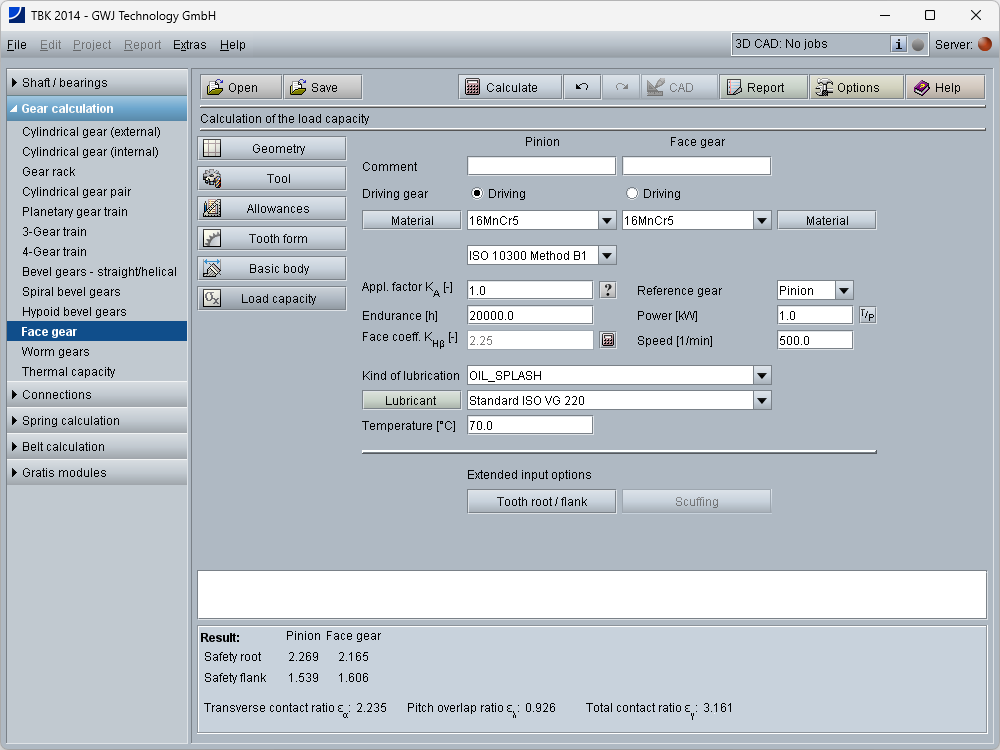

- Load capacity for root and flank analogous to ISO 10300 using virtual cylindrical gear

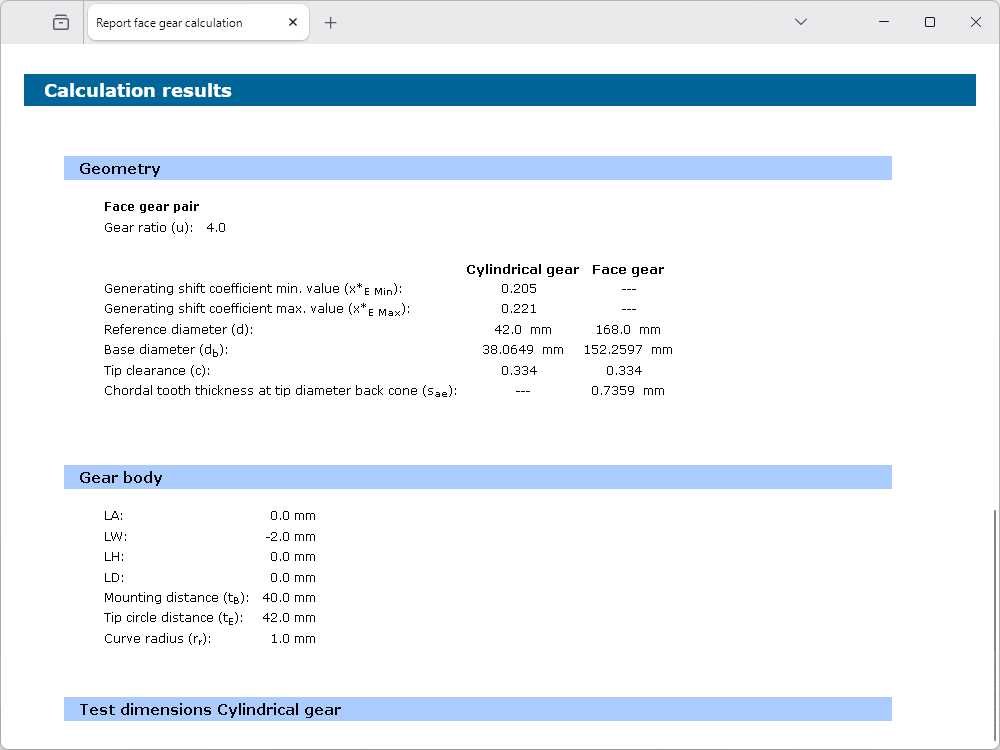

- Design support (display in GUI/messages/calculation report)
- Planned points for design support:
- Undercut limit
- Tooth tip limit
- Interference limit
- Minimum inner radius (face gear)
- Maximum outer radius (face gear)
- Maximum facewith (face gear)
- Specific sliding
