General calculations
Calculation of:

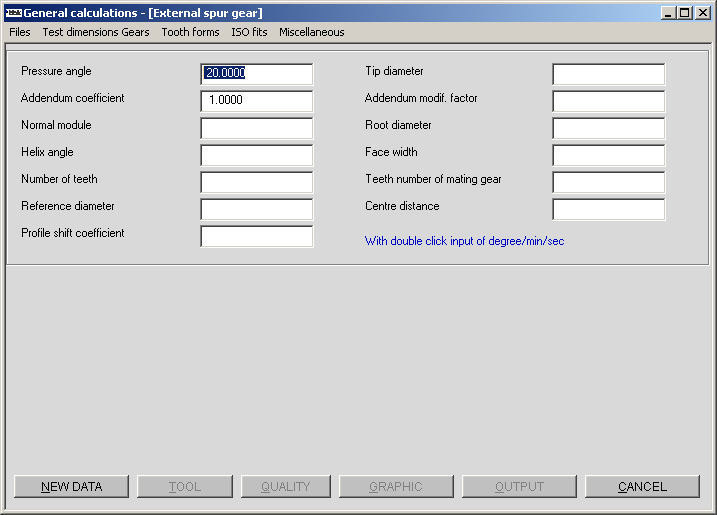

Test dimensions of single wheels, for internal gearings: check of mesh gear shaper cutter and work piece

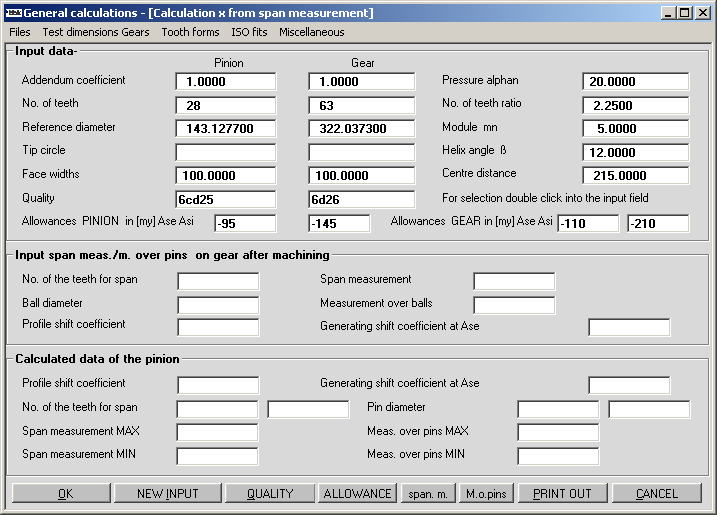

Determination of profile shift modification from span measurement and determination of geometry data of the mating gear
Deviations and clearance for interference fits
Input for hole and shaft:
Nominal diameter in mm, position tolerance, quality

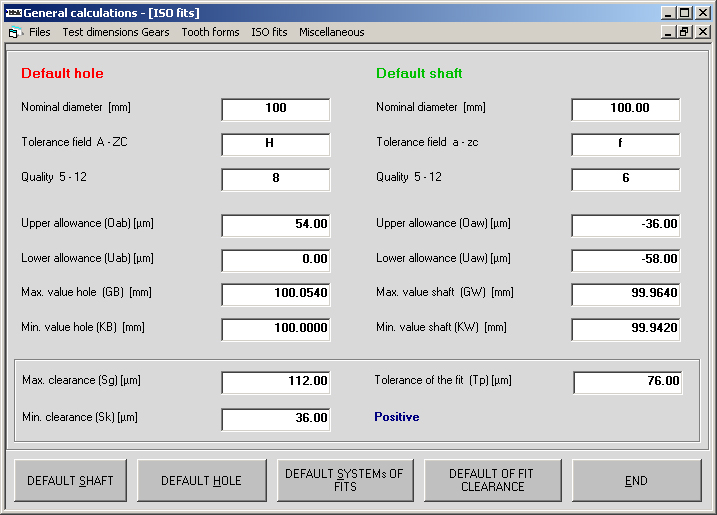

The following values are calculated for hole and shaft:
Upper deviation in µm, lower deviation in µm
Maximum size hole and shaft in mm
Minimum size hole and shaft in mm
Maximum and minimum clearance in µm and fit tolerance
Default values clearance and basic hole or basic shaft
Definition of minimum and maximum clearance (positive) or interference (negative) in µm
According to pre-selection, definition of nominal diameter, position tolerance, quality for hole or shaft

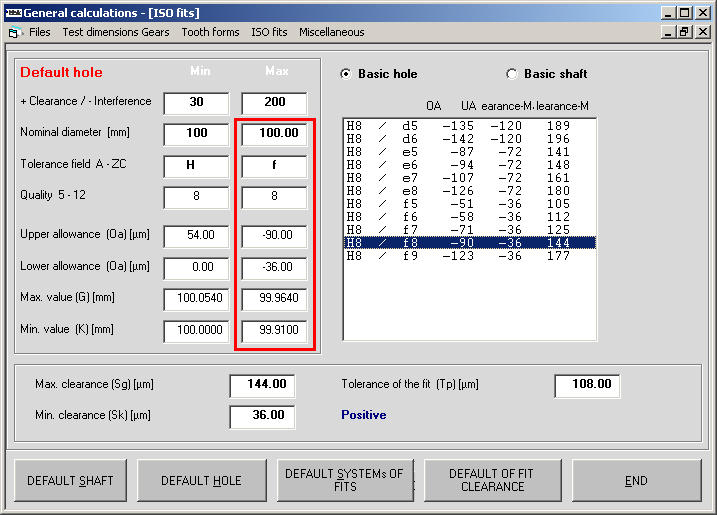

Possible interference fits are displayed (within the predescribed clearance and interference)
By clicking, the selected pairing is transferred, deviations, diameter and clearance or interference are calculated and displayed.
System of fit hole
System of fit clearance
Calculation span measurement
Test dimensions gears
